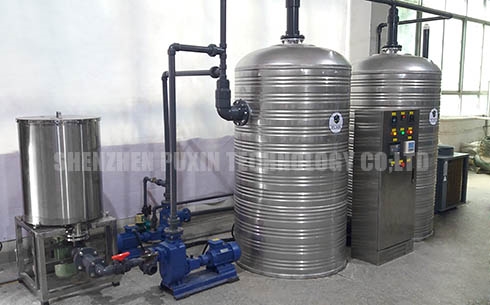

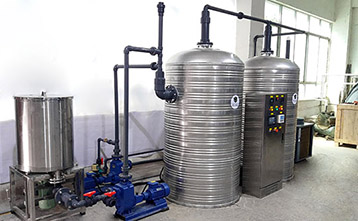

1. food waste disposer, 2.feeding pump , 3. anaerobic reactor, 4.heat pump

5. console, 6. Biogas purification unit, 7. biogas storage bag, 8. Biogas stove


The product is designed mainly for restaurants to treat food wastes, and for anaerobic scientific researches.

The product is mainly composed of a food waste disposer, a feeding pump, two anaerobic reactors, a heat pump, and a console.

The anaerobic reactor is constructed of double layer of stainless steel plates with a foam insulation layer installed between, and is heated by a heat pump system. It has a temperature controlling system, a PH controlling system and a mixing device installed.



1.Technical Parameters





Total Volume    of     digester


Diameter  of   digester


Height of digester


Power for heat


Power of food

 waste disposer

2.4m31500mm
2000mm
2.72kw2.2kw


2.Max raw material of daily feeding



Food wasteCow manurePig manureChicken manure
Max waste feeding  (kg/d)7518613480
Biogas Gas production (m3/d)6666
